Types of Shower Doors

Main Types of Shower Doors by Opening Mechanism

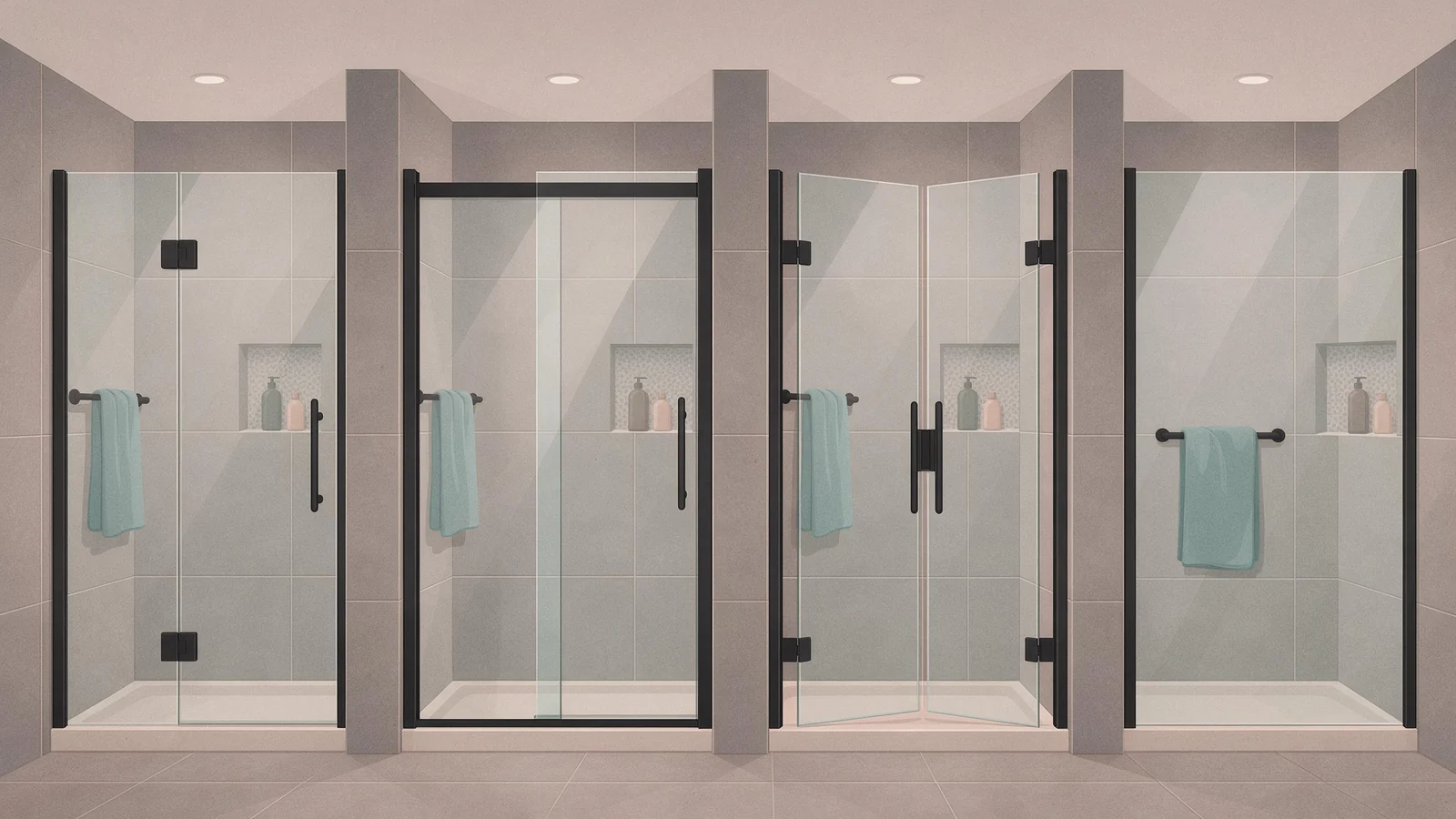

Shower doors split into four groups based on how the glass moves. Pivot or hinged doors swing open like a regular door, bi-fold doors fold against the wall, sliding doors ride along a track, and fixed panels don't move at all. If the door swings, you have to check that nothing is in the way when it opens, that clearance is a common miss on site.

Pivot shower doors hang from a hinge at the wall or a side panel and can swing both ways. A hinged shower door works the same but the buyer decides if it opens in or out. That choice depends on how the bathroom is laid out and what the owner wants, so measure the swing arc before you commit to either one. For small bathrooms, the bypass style usually makes more sense, a sliding glass shower door has two or more panels on a track and one of them stays put while the other moves. Bi-fold doors do two things at once. The panels hinge in the middle and slide on a top track so the whole thing folds back flat when it's open. And a fixed panel is just a sheet of glass that never moves. Walk-in showers often get by with one because keeping water in the stall matters less than keeping the opening wide.

Framed vs. Semi-Frameless vs. Frameless Shower Doors

A framed door holds thin glass inside a metal frame, and the frame does the structural work. Thin glass keeps the price down; the trade-off is more metal on show. Semi-frameless shower doors keep only a narrow strip of metal at the sides, so most of the panel reads as bare glass. Frameless shower doors lose the frame completely. With nothing around it, the glass has to be thicker and tempered, and the hinges and clamps carry the whole panel on their own, opening after opening.

So who buys which? Framed doors turn up in rental flats, budget hotels and tub/shower combos, where cost matters and the door will be treated roughly. Semi-frameless suits mid-range homes and hospitality jobs that want a lighter look without the frameless price. Frameless goes into high-end apartments, villas and boutique hotels, where the owner is paying for an open, clean line. On every project the question comes back to the same two things: the budget now, and how the finished bathroom has to look.

Cleaning differs too. On a framed door, soap scum settles in the joint where metal meets glass, and those corners need a brush. Frameless has fewer joints to trap it, though the glass edges and hinge points still need regular wiping. None of them clean themselves.

Glass Specifications: Thickness, Tempering, and Coatings

Shower door glass has to be safety glazing. In the U.S., shower doors and enclosures land in Category II under the federal safety glazing standard, so the panel has to be tempered or laminated. That means it breaks into small chunks instead of sharp shards, which drops the odds of a serious cut. Laminated is two or more pieces of glass bonded around a tough plastic interlayer, and it stays in one sheet when it cracks. That matters when security or sound control is on the table.

Thickness follows the door style. Framed doors get away with thinner glass because the frame carries the panel, but frameless needs thicker stock to handle the stress. The exact figure comes down to panel width, height and hardware, so take it from the supplier's drawing for each panel rather than from a rule of thumb. Low-iron glass has less green tint than standard clear, so it reads brighter and cleaner. Coatings are available to resist water spots and soap buildup. They wear out over time, but they stretch the time between cleanings if you maintain them.

Standard Shower Door Dimensions and Custom Sizing

There is no single shower door size that works everywhere. Widths and heights track the common openings in each market and project type, and they drift from one to the next. A shower door is normally narrower than a room door and tall enough to keep the spray inside. Minimum openings come from comfort and from the local building code, and a person should be able to step into a walk-in without turning sideways. In an accessible shower, the clear opening has to take a wheelchair or other mobility aid.

Renovations are where sizing goes wrong. Walls are rarely square, and once the opening is non-standard, out of square, or the panel is oversized, you are into custom sizing. Measure the opening at several heights and widths and work from the smallest figure, or the door will bind or leave a gap. On commercial jobs custom is often the norm anyway. A hotel with bathroom pods or a block of flats may repeat one opening size, but every site still gets checked before production starts.

Shower Door Seals and Water Containment

You have four ways to stop water leaving the shower: bottom sweeps, drip rails, magnetic strips, and PVC gaskets. A bottom sweep mounts to the bottom edge of a swinging door and wipes water back into the shower every time the door moves. Drip rails are angled profiles that direct water inward. Magnetic strips get embedded in the closing edges of framed or semi-frameless doors, so the door pulls itself shut and holds tight. PVC gaskets fill the gaps between glass panels and walls, or between fixed and moving panels. In a frameless setup, they are the workhorses.

Framed doors lean on magnetic strips and vinyl gaskets because the frame gives you a channel to seat them in. Frameless doors cannot hide anything, so they use clear PVC seals and bottom sweeps that clip onto the glass. How well any seal performs comes down to the gap size, the door alignment, and the seal material. Seals get brittle or discolored over time, that is normal. Treat them as wear parts and check them during routine maintenance. When one fails, replacement seals are inexpensive and easy to install.

Hardware and Finishes for Shower Doors

Hinges are doing the real work here, carrying the glass weight that shifts how the door feels each time someone swings it open. You will run into wall-mount, glass-to-glass, and pivot. Wall-mount ties the door to a fixed wall or return panel, glass-to-glass connects it to a fixed glass panel, and pivot hinges rotate from a top and bottom point so the load spreads across the assembly a little differently.

Handles range from towel bar and vertical styles to blade handles and knobs, and that choice changes both the function and the look in the bathroom. Chrome, brushed nickel, matte black, and brushed gold are the common finishes, with chrome staying the most widely available and the easiest to match. Brushed nickel hides fingerprints better. Matte black and brushed gold show up most often in design-led projects. And no matter what finish or style gets picked, the hardware has to match the glass thickness and the total door weight because heavier frameless panels need hinges with higher load ratings and more fixing points.

Choosing the Right Shower Door for Different Applications

Start with the floor plan. If a toilet or vanity sits close to the shower opening, a door that swings out will hit it, so go with a sliding door or a fixed panel. With more clearance, a hinged or pivot door becomes an option and gives a wider way in. Walk-in showers mostly get a fixed panel, or one hinged door when the owner wants the enclosure closed. For accessible showers, the opening has to be wide enough for a wheelchair and the threshold low or flush with the floor.

Over a bathtub, bypass sliders are the default because nothing swings into the room. Hotels and other commercial jobs judge doors differently than a homeowner does. Housekeeping wipes every shower every day, so fewer crevices means less time per room, and a hinge that sags under hard use turns into a maintenance ticket nobody wants. On those projects, ask for thicker glass, heavier hinges, and seals that a technician can swap without taking the door down.

Quality Control and Compliance for Export Shower Doors

Export shower doors have to satisfy the safety glazing rules of the country they are shipped to. For the United States that means tempered glass in the shower meeting the U.S. safety glazing standard, while Europe works to EN standards. Ask for test reports showing the glass is tempered and has passed the relevant impact tests. Don't skip hardware corrosion either. Salt air on the coast, or a steamy hotel bathroom, will rust cheap fittings quickly, so specify stainless steel or a good grade of aluminum hardware with a finish that has a track record.

Shower doors are heavy and they break, so export packing has to do more than a domestic delivery would. Crate them, pad them with foam, protect the corners, and separate and fix each panel so nothing shifts when the container is handled. The paperwork is the commercial invoice, packing list and bill of lading, plus any product test reports. Third-party inspection reports and factory audit documentation are available on request for any product line. Winway has its own sanitary ware factory in Foshan and supplies shower enclosures alongside other sanitary ware, so project buyers can put shower doors, toilets, basins and other fixtures in one shipment.
